Spina bifida; instrumental; gait analysis; kinematics and kinetics; orthotics

The term spinal dysraphism ^[1] refers to those conditions that result from a defective development in the midline of the dorsal aspect of the embryo, resulting in bone or nervous system deformities. Cutaneous manifestations can be accompanied, but they are not always present.
Spina bifida belongs to a group of developmental disorders of the vertebral arches or the cranial vault. They are often associated with disorders of the formation of structures derived from the neural tube and meninges, and can lead to cystic formations. The causes of spina bifida appear multifactorial. Folic acid deficiency is a significant factor and there appears to be a genetic component.
Three types of spina bifida can be described: The severity ranges from occult, in which no obvious abnormalities are seen, to protruding sacs (cystic spina bifida), and to a completely open spine with severe neurological disability and death.
Occult Spina bifida is a defect located in one or more vertebral arches. It develops as a failure of the vertebral arches, remaining unfused in the third month. The spinal cord and meninges remain within the vertebral canal.
The meningocele is a cystic mass of the dura and arachnoid that protrudes through a defect in the vertebral arches under the skin. The spinal cord is completely confined to the vertebral canal, but abnormalities can occur.
Myelomeningocele (MMC), or open spina bifida, where the exposed elements of the spine are fully exposed.
The spectrum of clinical presentation is huge, from lethal rachischisis to asymptomatic occult spina bifida with a small lipoma. The diversity of presentations suggests that causal factors exert their effects in different periods of development, in addition to genetics and the environment that must be considered. Other associated abnormalities found in spina bifida are congenital spinal deformity, Sprengel deformity, tethered cord, neurogenic bladder, and clubfoot. A high incidence of allergy to latex has also been observed.
Progressive neurological deterioration can occur because hydrocephalus in association with an ArnoldChiari type II defect is common and develops in 80% of children with thoracolumbar myelomeningocele ^[2-5].

The instrumental gait analysis (IGA) is the record of the biomechanical variables of human movement related to the way we walk. Allowing to know the principles that govern the human movement, making its analysis more objective and able to be measurable.
Nowadays it is compound by:
1. The clinical exam using muscular force measurement through dynamometry;
2. Observational Analysis (three-dimensional video);
3. Kinematics and muscle length;
4. Kinetics;
5. Muscle activity (dynamic EMG);
6. Energy consumption;
7. Baropodography.
This type of analysis has made it possible to identify the prerequisites for normal gait, making it easier to recognize deviations that occur in pathological gait.

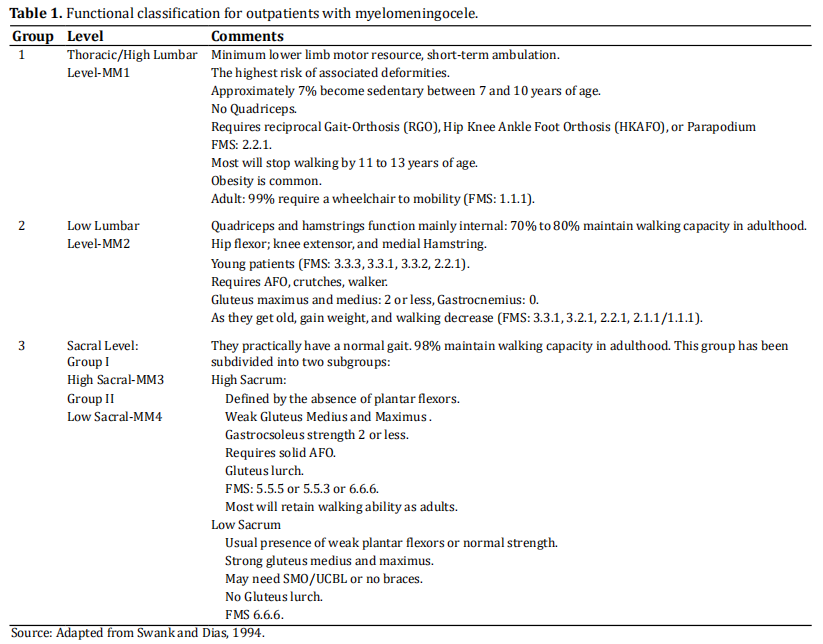

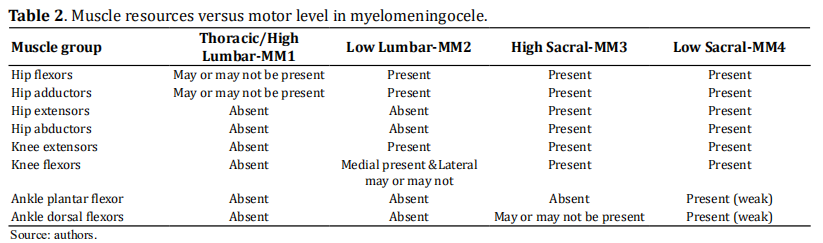

Regarding independence in daily life, at present, the most accepted classification is the one that arises from the available motor function ^[6-8], so it should be clear what the patient’s motor resources are, mainly the antigravity muscles, which are also related to the prognosis of gait and its maintenance over time.
Ambulation is also affected by age, obesity, spasticity, orthopedic deformities, etc. ^[9] The greater the commitment, the greater the disability and implications such as survival, associated deformities, and the ability to walk.
Motor level and balance are two main factors that compromise the ability to walk and subsequently the degree of support required.

Factors affecting gait quality include ^[11]: muscle weakness, severe scoliosis, flexion contracture of the hip, abduction contracture of the hip, subluxation or dislocation of the hip (with or without soft tissue contracture), rotational deformities of the hip (internal or external) ^[12], flexion contracture of the knee ^[13-15] and tibial torsion (internal or external) ^[16,17]. Since a large percentage of outpatients maintain their ability to walk, its quality must be considered. Gait analysis can be used to access and help quantify its quality during ambulation ^[9].
Generally, a clinical assessment of strength alone rarely reflects the asymmetry noted during gait. An instrumental gait analysis should be the standard of expert care for children with movement abnormalities secondary to spina bifida ^[18,19].
The IGA has made it possible to measure the impact of the orthoses with the use of kinematics ^[20] and kinetics on the loads applied to the joints of the lower limbs during movement ^[8,17,21,22]. With which the benefit or not, of walking aid options is documented, and their impact on biomechanics ^[23].

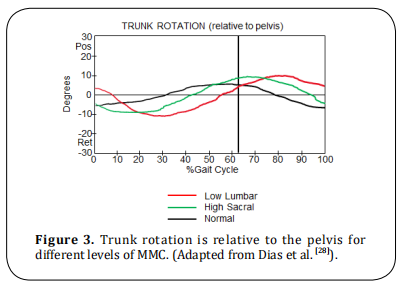

It allows observing the knee moments in the coronal plane to define if there are valgus forces ^[24], as well as documenting the rotation patterns of the trunk and pelvis in the transverse plane ^[25] due to the combination of bone deformities and muscle weakness.
IGA also shows muscle function, especially in the ankle, due to muscle hyperactivity, muscle shortening, or weakness ^[22,26,27] resulting from growth, puberty, or cord retention, when a given treatment is considered.
It documents postoperative changes that are used for subsequent decision making. All this information allows the specialist to formulate treatment plans and protocols in order to develop the maximum potential and independence of the patient ^[8,17,21,22].

This section shows more in-depth the IGA evidence applied to the management of patients with MMC ^[28], with examples based on gait kinematics and kinetics. Kinematics and kinetics derived from functional modeling in 3-dimensional instrumental gait analysis provide subject-specific data and can detect not only static but also functional alignment.

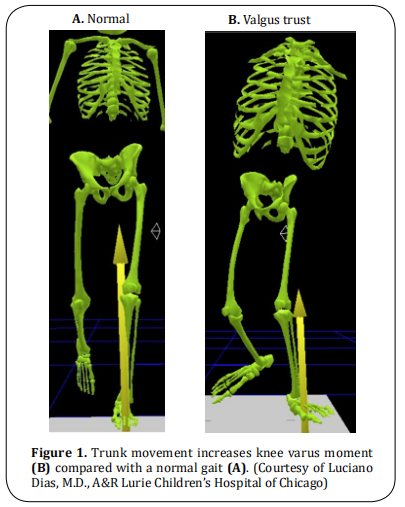

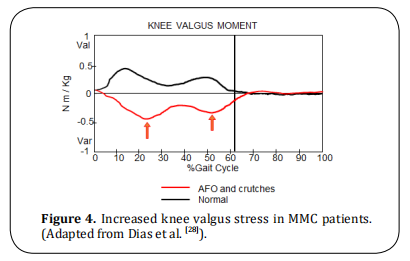

Gluteus weakness is the cause of compensation with the lateralization of the trunk during ipsilateral support (Figure 1), also affecting the movements of the pelvis and trunk in the coronal and transverse planes [excessive pelvic obliquity and rotation (Figure 2), and excessive trunk rotation (Figure 3), in kinematics] and at the knee (increased valgus stress, Figure 4).

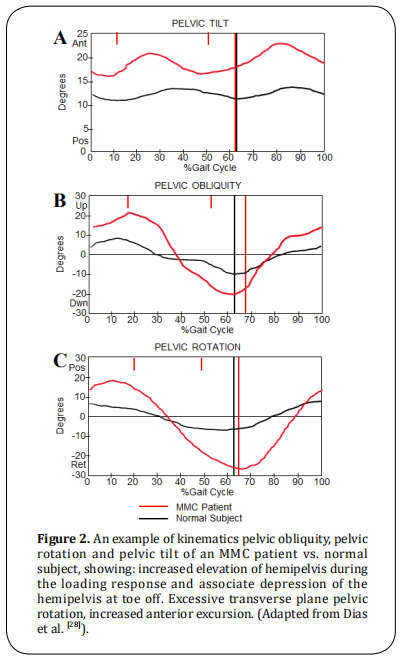

The primary factor of the pelvic obliquity (Figure 2B) is the hip abductor weakness which induces a lateral trunk movement over the stance limb. Generally higher levels will show a greater pelvic oblique pattern.
The deviation in the pelvic rotation (Figure 2C) is a compensatory motion in the presence of decreased strength of the ankle plantar flexor (primary power generator of walking) and weak hip extensor.
MMC patients show greater than a normal excursion of anterior pelvic tilt progression during single-limb stance (Figure 2A). Its primary factor obeys a decreased hip extensor strength (Gluteus Maximus).

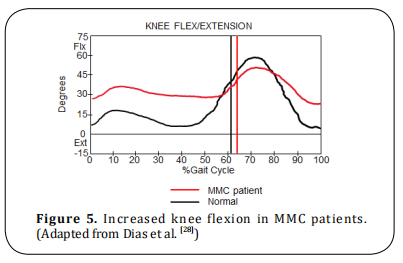

Its primary cause is a weak plantar flexor, and or hip extensor, or quadriceps. Prolonged muscular activity recorded on EMG of the hamstring during the stance phase is needed to control pelvic tilt.
Swing phase pelvic rotation and hip abduction can interrupt the pendulum action of the swing limb. Hip and knee flexor contractures are generally more associated with high levels, affecting the pattern and magnitude of movement.

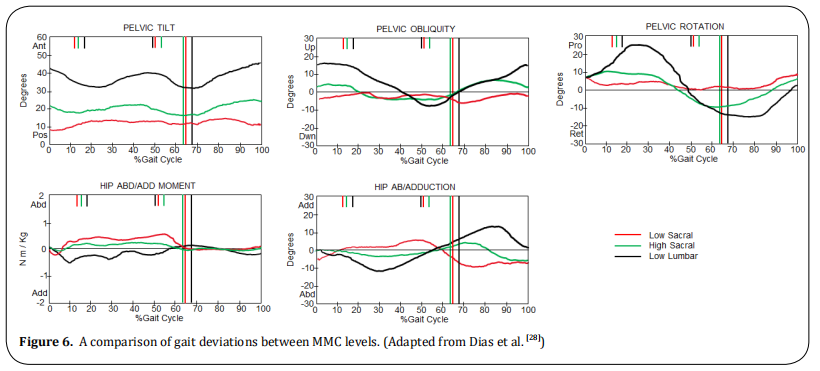

As can be seen in the graphs of (Figure 6), the pelvic tilt and pelvic rotations increase with the level of the lesion.

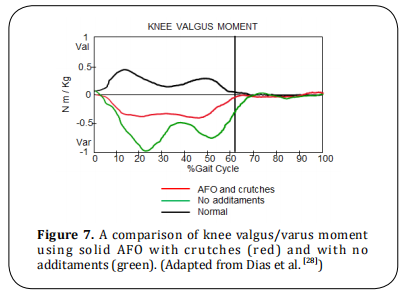

IGA also shows the impact of the use of orthosis and additaments (Figure 7). Solid AFOs stabilize the ankle and hindfoot, preventing foot and knee valgus. Crutches decrease trunk movement, therefore, decreasing internal knee varus moment. AFOs also reduce excessive knee flexion in the stance phase as shown in (Figure 8).
Due to the increase of the pelvic tilt and pelvic rotations with the level of the lesion shown by kinematics (Figure 6), a surgery that affects pelvic motion will make the gait more difficult.
Besides, IGA kinetics have demonstrated that any surgery that decreases the strength of power generation muscles (i.e. Ileopsoas, Gluteus, Hamstrings), will affect gait. Transfers of the Iliopsoas muscle (Sherrard procedure) should not be performed as it decreases the flexor power of the hip. Spinal fusion to the Sacrum in low lumbar and sacral level patients must not be performed.

In this review, we want to show the current state of disease management, its approach with “in utero” interventions, and current treatments based on the knowledge obtained through gait analysis. Existing treatment protocols depend on the anatomical level (muscle resources), balance, and bilaterality or not, present.
Spina bifida is the most common congenital defect, presenting in a wide range of severity and with poor postnatal treatment options. The resolution “in utero” ^[29-31] have shown beneficial results such as the absence of a sac over the lesion, an improvement in the functional level, per example: an L3 lesion is significantly associated with independent ambulation ^[32,33]. The decrease in the need for ventriculoperitoneal shunts remains controversial, as the incidence or not of Chiari malformation as well ^[31]. Improved surgical techniques have controlled a large percentage of obstetric risks such as premature births and maternal complications derived from the procedure.
Due to the variety of medical comorbidities involved, for the evaluation and management of these patients, the competence of a multidisciplinary team ^[34], such as neurosurgery, pediatrics, physiatry, urology, orthopedic surgery, orthotics, physiotherapy, and social work is necessary for appropriate handling.
The goal of the orthopedic surgeon is to correct deformities and improve function and mobility. This is where IGA plays an increasingly important role in behaviors, decision-making, and treatment ^[35]. Decision making about treatment has been made more precise and with better results based on the scientific method, so the inclusion of Instrumental Gait Analysis is essential in the patient care process ^[36].
Gait analysis enabled to have a better understanding of the gait patterns of each level, allowing to know, which is the best orthosis or additament, and what deformity affects gait and currently has a greater influence on the selection of functional surgical procedures. The results of the instrumental gait analysis often change the identification of pathologies and surgical recommendations, e.g. femoral derotation osteotomy, first metatarsal osteotomy, the release of the plantar fascia, tibial derotation osteotomy, etc ^[36].
The magnitude of muscle weakness associated with the lesion level is the predominant factor that induces the adapted walking patterns. patients with a low lever lesion typically walk with AFOs and without external support. Higher-level typically walks with AFOs and external support.
The indication of splints on the feet, ankles, and knees is accepted, as long as an improvement in function is demonstrated.

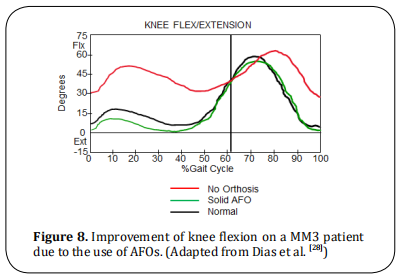

In MM3, the use of the AFO stabilizes the ankle and foot, and its use protects valgus feet and valgus knee. The AFO substitutes for weak ankle plantar flexor in the stance phase (improves the abnormal plantar flexion-knee extension couple) and weak ankle dorsiflexors in the swing phase. The stabilization of the ankle due to AFOs enhances the knee extension in stance (as shown in Figure 8).

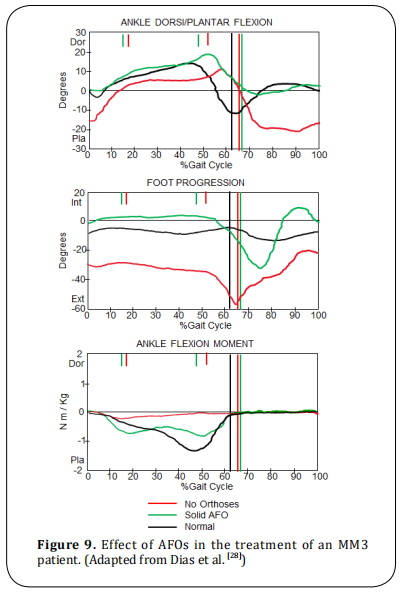

AFOs provide (Figure 9) support to prevent foot drop in swing, improves the valgus position of the foot in stance and lever arm of the ankle/foot (resulting in an improvement of ankle plantar-flexor moment and power generation in terminal stance/pre-swing). The following paragraphs show the deformities that can affect the function and how they are treated, such as hip contractures and/or dislocation, knee contractures, rotational deformities of the femur or tibia, and foot deformities.

Hip pathologies

It is a consensus to treat hip dislocation in patients with L5 level or lower and the release of contractures is limited to being functionally significant.
Hip flexion contracture that produces anterior pelvic tilt from 20°-60°, or increased hip flexion in stance which may or may not be associated with increased knee flexion and decreased hip extension. It could be treated with the following procedures: hip flexor lengthening, fascia-lata tensor release, transfer sartorius origin to the anterior inferior iliac spine or free tendon graft, the proximal release of rectus femoris, iIiopsoas lengthening above the brim, anterior hip capsulotomy (if necessary). In severe cases after hip flexor lengthening, proximal femur extension osteotomy. The final procedure to be applied to the patient will depend on the surgeon’s criteria.

Low lumbar level with unilateral hip subluxation (with hip flexion and adduction contractures)

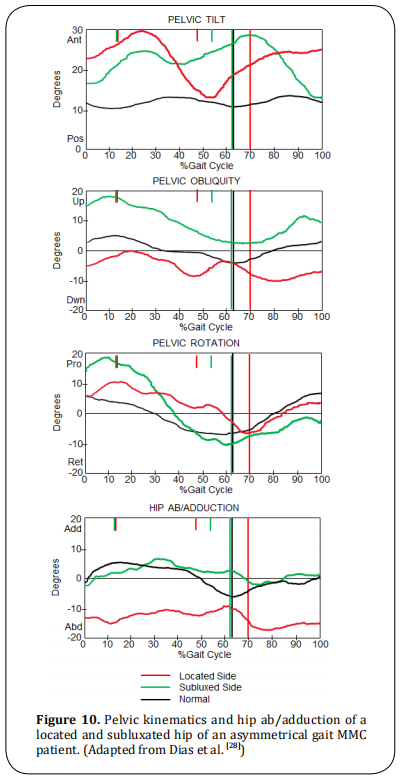

Those patients walk with AFOs and crutches with any of these characteristics: asymmetrical hip flexion contractures result in asymmetrical pelvic tilt and/or pelvic rotation, asymmetrical hip adduction contracture results in asymmetrical in pelvic obliquity and/ or hip ab/adduction, leg length discrepancy (may also contribute to the gait asymmetry). The treatment may need hip flexor lengthening, adductor myotomy, valgus osteotomy (Shanz) if necessary. Femoral shortening or epiphysiodesis for leg length discrepancy (Figure 10).

Low lumbar level with unilateral hip subluxation (with symmetrical or no contractures)

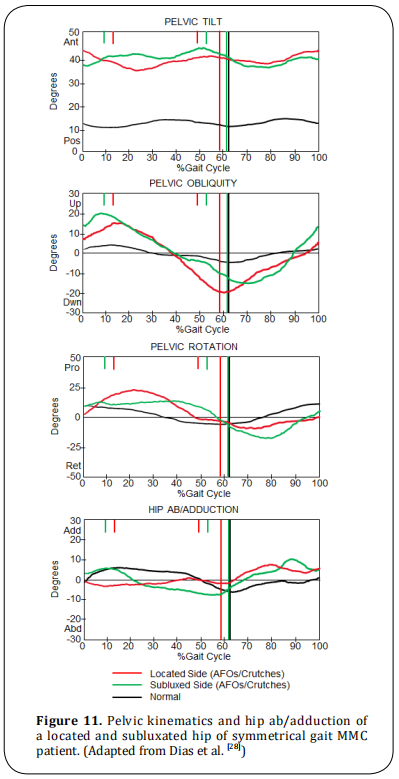

These patients walk with AFOs and crutches (some without it) and with symmetrical anterior pelvic tilt, due to symmetrical hip flexion contractures or absence of contractures (Figure 11). These patients do not need surgical relocation, treat hip flexion contracture if it is above 20 degrees.

Sacral level

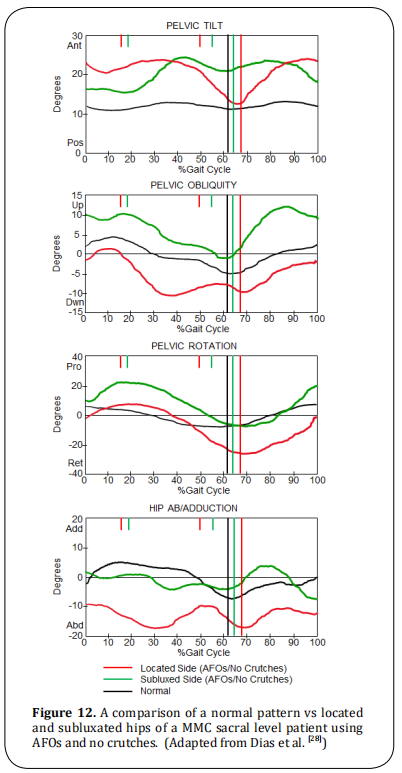

If unilateral hip subluxation and/or dislocation is present, it is important for these patients to rule out a tethered cord. Those patients walk with AFOs and without crutches and asymmetric gait patterns in terms of the pelvic obliquity, pelvic rotation, and hip ab/adduction as shown in the following plots (Figure 12).
Depending on the alteration, treatment must include the relocation of the hip, open reduction, pelvic osteotomy (Shelf, Pemberton, Dega, based on surgeon criteria), varus derotation osteotomy (VDO), external oblique transfer or Mustard procedure and treat any of soft tissue contractures.

Knee pathologies

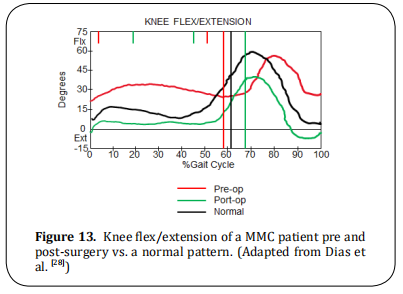

Knee flexion contracture, will augment the tendency for increased knee flexion which results from weak ankle plantar flexor and hip extensor. The IGA graphs show increased stance phase knee flexion (Figure 13). In consequently the corresponding sagittal plane graphs of hip and knee (not displayed in this document), will show hip flexion and ankle dorsiflexion. Treatment: orthoses are of limited benefit when knee flexion is equal to or less than 30 degrees. The surgery will be the lengthening of the hamstrings and in extreme cases distal femoral extension osteotomy.

Rotational deformities of the femur and tibia

Femur

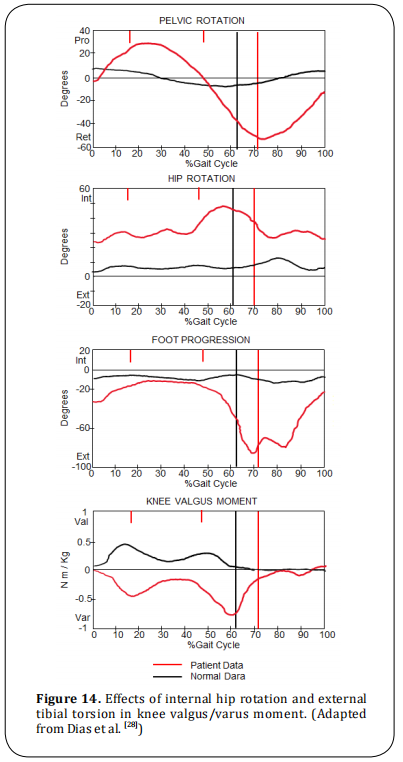

Internal hip rotation may be present, then foot progression angle varies depending upon the degree of external tibial torsion, and kinetics will show internal varus moment at the knee with external tibial torsion (Figure 14). Treatment of such deformities is femoral derotation osteotomy. If there is external tibial torsion, tibia/fibular derotation osteotomy must also be considered.

Tibia

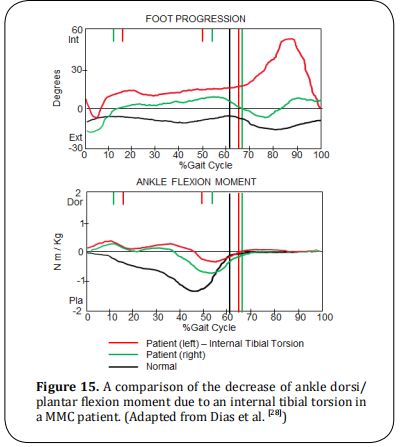

Internal tibial torsion is uncommon in MMC patients. Internal foot progression angle during the swing phase, decreases ankle plantar-flexor moment wave at the terminal stance, as shown in (Figure 15). The treatment for such cases is the use of orthosis: AFOs, KAFOs depending on level.

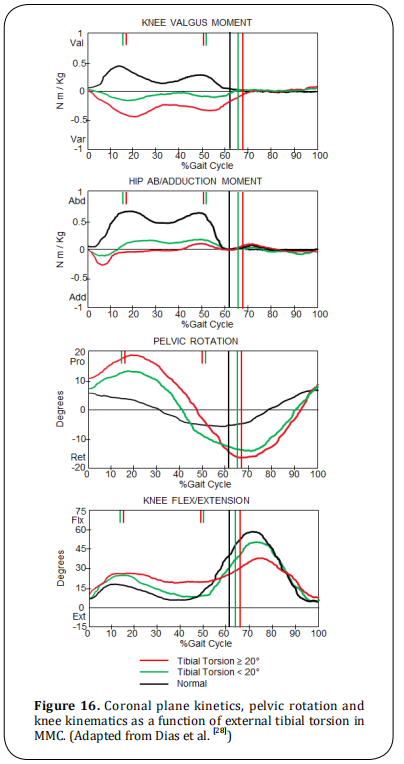

External tibial torsions are common in MMC. The magnitude of the external tibial torsion affects the kinetics of the coronal plane (Figure 16), which has been evaluated by several authors ^[37,38]. Other factors must be considered because they are consequences of an external tibial torsion, such as: trunk lean toward in stance phase, dynamic pelvic rotation internal hip rotation, stance phase knee flexion, and ankle and hindfoot valgus.

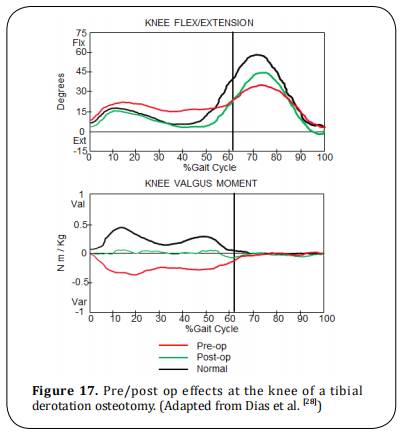

Treatment of external tibial torsion may be either orthotic or surgical. If it is less than 20 degrees then an AFO/KAFO is recommended. Surgery tIbial/fibular supramalleolar derotation osteotomy should not be done until 5 or 6 years old (Figure 17).

Foot deformities

Pes valgus is the most common foot deformity, and consists of hindfoot pronation with supination and abduction of the forefoot, producing the same effect in the lower limbs upper segments as the external tibial torsion (knee varus moment). In addition, abnormal ankle plantar flexion-knee extension couple due to loss of lever arm rigidity.
The treatment suggested is anterolateral release secondary to muscle imbalance and progressive deformity, otherwise maintained with UCBL type orthosis until 8 years. After 10 years, an osteotomy of the calcaneus should be considered and the maintenance of UCBL.
Talipes equinovarus present at birth is also frequent. Initially treated with serial casting and continuous splinting until the child is 12 months old, then surgery if needed. Surgery consists of postero medial lateral release with tendon excision.
