Open Access | Case Report
This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.
Unusual method in tracheo-bronchial foreign body aspiration management
*Corresponding author: Walid Abu Arab
Mailing address: Cardiothoracic Surgery Department, Faculty
of Medicine, University of Alexandria, Middan Al-Khartoum,
Alexandria, Egypt.
Email: walidabuarab@yahoo.com
Received: 22 February 2019 Accepted: 16 April 2020
DOI: 10.31491/CSRC.2020.06.055
Abstract
Tracheo-bronchial foreign body aspiration could be a life-threatening condition that occurs mainly in children. Prompt diagnosis and intervention through foreign body retrieval are critical to prevent probable morbidity and mortality. The retrieval procedure could be difficult depending on the shape and consistency of the foreign body material. Surgeons can utilize special tools to help in the extraction of tracheo-bronchial foreign bodies. We present here a child patient who accidentally aspirated a plastic bead. He underwent successful retrieval of the foreign body using a Fogarty embolectomy catheter introduced through a rigid bronchoscope.
Keywords
Foreign body; aspiration; tracheo-bronchial foreign body
Introduction
Tracheo-bronchial foreign body aspiration could be a life-threatening event [1, 2]. It occurs mainly in children [3]. Early diagnosis and management are important to avoid complications [1-3]. Endoscopic extraction could be difficult and may require the employment of special instruments [3]. We present here a child patient who accidentally aspirated a plastic bead. He underwent successful retrieval of the foreign body using a rigid bronchoscope and a Fogarty embolectomy catheter.
Case Report
A nine-year-old male child was referred to the Cardiothoracic Surgery Department with a history of aspiration of a plastic bead into the trachea-bronchial tree. A
previous trial of bronchoscopic extraction was done using a dormia basket at another center. The child was asymptomatic. However, examination revealed decreased
air entry over the left lung base.
Plain chest x-ray showed a rounded smooth opacity related to the foreign body; it was located mostly in the
left lower lobar bronchus (Figure 1). Routine laboratory
investigations were performed. The findings were within the normal values for age and sex. Rigid bronchoscopy under general anesthesia was performed using the
number 5 Karl Storz bronchoscope. A foreign body in
the form of a white plastic bead with a central hole was
visualized. Repeated attempts of extraction using conventional foreign body forceps were conducted with no success.

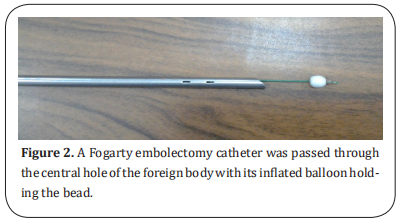

A Fogarty embolectomy catheter was passed under vision through the central hole. The balloon was inflated.
This was followed by the removal of the catheter holding
the bead together with the bronchoscope as one unit
(Figure 2).
Further examination of the tracheo-bronchial tree was
conducted to exclude any traumatic injury or impacted
secretions. No complications were encountered. The patient was discharged on the same day.
Discussion
Foreign body aspiration occurs mainly in children [3]. Foreign
bodies could be organic in nature, such as nuts and seeds,
or inorganic like pins, nails, and dental appliances [4]. In this
study, the child aspirated a bead, which is a rounded plastic
piece with a smooth surface and a very small opening at its
center. Usually, foreign bodies could be removed using extraction forceps [5]. However, sometimes, special tools need to
be used such as a magnet for metallic objects [6] or a Fogarty
catheter [7]. In the case at hand, the bead was rounded and
smooth and impacted inside the lobar bronchus. It was difficult to grasp with forceps or to pass any tool like a Fogarty
catheter between the bronchial wall and the bead. Surgery in
the form of bronchotomy was an option. However, surgeons
should exert their best efforts to avoid major procedures and
the probable complications in such cases. Creativity and the
ability to use available tools according to the type of the foreign
body and its shape should be kept in mind. In our patient, a
Fogarty catheter was used to pass through the central hole,
followed by the inflation of its balloon. Then, the Fogarty catheter with its inflated balloon supporting the foreign body was
removed with a rigid bronchoscope.
The procedure of foreign body extraction in infants and
children requires the collaboration of the surgeon and the
anesthetist. Both should be patient and communicate well to prevent intra-procedural complications.
Conclusion
In conclusion, the management of aspirated foreign bodies could be difficult. It necessitates the use of available instruments depending on the shape and structure of the foreign body in order to extract it endoscopically and avoid bronchotomy.
Declarations
Conflicts of interest
All authors declared that there are no conflicts of interest.
Authors’ contributions
Abdel-Aziz A. and Abu Arab W.; have collected the data and wrote the manuscript. Abu Arab W. has revised and edited the manuscript.
References
1. Mahmoud, M. , Imam, S. , Patel, H. , & King, M. (2012).
Foreign body aspiration of a dental bridge in the left main
stem bronchus. Case Reports in Medicine, 2012, 1-4.
2. Burton, E. M. , Brick, W. G. , Hall, J. D. , Riggs, W. , & Houston,
C. S. (1996). Tracheobronchial foreign body aspiration in
children. Southern Medical Journal, 89(2), 195-198.
3. Midulla, F., Guidi, R., Barbato, A., Capocaccia, P., Forenza, N.,
Marseglia, G., ... & De Benedictis, F. M. (2005). Foreign body
aspiration in children. Pediatrics international, 47(6),
663-668.
4. Weber, S. M., Chesnutt, M. S., Barton, R., & Cohen, J. I.
(2005). Extraction of dental crowns from the airway: a
multidisciplinary approach. The Laryngoscope, 115(4),
687-689.
5. Wadhera, R., Hernot, S., Gulati, S. P., Kalra, V., Kaintura, M.,
& Singla, A. (2000). Combined use of a Fogarty Balloon
Catheter, Bronchoscope, and Tracheostomy for the
Controlled Retrieval of an Endobronchial Foreign Body:
A. Head Neck Surg, 123, 311-6.
6. Mayr, J., Dittrich, S., & Triebl, K. (1997). A new method
for removal of metallic-ferromagnetic foreign bodies
from the tracheobronchial tree. Pediatric surgery
international, 12(5-6), 461-462.
7. Ullyot, D. G., & Norman, J. C. (1968). The Fogarty catheter:
an aid to bronchoscopic removal of foreign bodies. The
Annals of thoracic surgery, 6(2), 185-186.
