Complicated tracheo-bronchial papillomatosis
*Corresponding author: Prof. Walid Abu Arab
Cardiothoracic Surgery Department, Faculty of Medicine,
Middan Al-khartoum, Alexandria, Egypt.
E-mail: walidabuarab@yahoo.com
Received: 29 July 2019 Accepted: 05 September 2019
DOI: 10.31491/CSRC.2019.09.005
Abstract
Respiratory papillomas are rare benign lesions. They are characterized by the appearance of papillomatous lesions anywhere in the tracheo-bronchial tree. It affects children and young adults. Although the disease affects mainly the upper airways, it may be aggressive and extends distally to the lower respiratory tract and pulmonary parenchyma. The course of the disease is unpredictable. It may regress spontaneously, but in other instances, it may lead to serious complications ranging from airway obstruction up to malignant transformation. Surgical excision is the mainstay of definitive treatment to prevent recurrence and to exclude malignancy. We have reviewed the literature for this rare type of respiratory disease and present a thirtyfive years old; male patient who had chronic cough and was referred to our unit with a CT-chest that revealed left main endo-bronchial lesion. Bronchoscopy and biopsy of the lesion were performed and revealed squamous papilloma. Final treatment introduced to the patient was endoscopic thermal ablation. However, the final pathology revealed complicated squamous bronchial papilloma with infection by aspergillosis and actinomycosis.
Keywords
HPV; Tracheo-bronchial papilmomatosis; endo-broncial lesion; bronchoscopy
Background
Pulmonary papillomas are rare types of lung neoplasms.
They are classified into three groups[1, 2] . The first group
is composed of multiple papillomatoses, which usually
affect the larynx, predominantly in children. Juvenile
laryngo-tracheal papillomatosis rarely involves the lower
respiratory tree. These types of papillomas are usually
related to the infection by human papilloma virus (HPV).
Although they frequently recur, they have a tendency to
regress spontaneously after puberty. The second group
includes inflammatory endo-bronchial polyps. These
inflammatory polyps usually arise from the mucosa in
patients with chronic respiratory infection. These polyps
are covered by respiratory ciliated epithelium. They
may show focal squamous metaplasia, and may contain
edematous fibrous tissue core with granulation-like tissue
and inflammatory cells. The third group of lesions
includes the solitary trachea-bronchial papillomas
(STBP). It is rare type and constitutes less than 0.5% of
lung tumors[1].
Pulmonary papilloma usually presents as an endo-bronchial
lesion in the segmental bronchi. They can be divided histologically into squamous cell, glandular and mixed
type papillomas[2, 3]. Squamous papilloma is characterized
by a bimodal age distribution. The young children
and young adults are the most commonly affected[4, 5].
The disease is common at age of childhood. The virus is
thought to be transmitted vertically through the contact
with infected secretions in the birth canal. However, in
adults, the HPV infection may occur following oral sex[5-7]. The histological presentation is benign squamous epithelial
stratification[7]. However, respiratory papillomas
are considered as tumors of low potential malignancy as
they may present with dysplasia, and they have a recurrence
rate around 20 % with the potential to transform
into squamous cell carcinoma[2]. Respiratory papilloma
is typically restricted to the larynx, but in some occasions,
it presents with aggressive behavior, resulting in
persistent or recurrent involvement of the naso-pharynx,
trachea-bronchial tree and rarely, the pulmonary
parenchyma[7-9]. Respiratory papillomatosis is a disease
of unpredictable course that ranges from spontaneous
remission to aggressive behavior, spreading to the
lungs and may require multiple surgical procedures to
maintain functional airway[10]. Diagnosis of respiratory
papilloma could be suspected from the clinical presentation
and imaging findings, however the final diagnosis
is based mainly on histo-pathological examination obtained
via biopsy of the lesion[7].
The glandular and mixed types of papillomas are seen in older men. They are less commonly associated with
smoking. Squamous cell papilloma can be exophytic, or
inverted. Microscopically they resemble viral papillomas
that are seen in the genito-perineal region. Glandular
papillomas can be lined by ciliated and non-ciliated
columnar cells, including occasional goblet cells. Mixed
papillomas were named before transitional papillomas.
Patients can be asymptomatic and discovered incidentally
or can present either with obstructive symptoms,
or hemoptysis[2].
Etiology
Respiratory papillomatosis has been linked to HPV infection.
Studies have revealed that there are more than
180 genotypes of HPV. They have a specific affinity for
squamous epithelial cells in different tissues. Consequently,
the infection with HPV can result into different
clinical manifestations[4, 6]. HPV has been associated with
many benign and malignant tumors of epidermal origin.
It is associated with cancer of the cervix, tumors of head
and neck, and ano-genital tumors[11].
There are different subtypes of HPV[5, 12]. The subtypes
6 and 11 are involved in more than 90 % of recurrent
respiratory papillomatosis[6, 13]. However, type 11 of HPV
is implicated in the development of the more aggressive
disease[12]. The subtypes 16 and 18 of the HPV are considered
to be associated with a high risk of transformation
into malignant disease, specifically into squamous
cell carcinoma[6, 7, 14].
Prevalence and Epidemiology
Respiratory papillomatosis can be presented either
during childhood or at early adulthood[5, 10, 15]. The
respiratory papillomatosis that occur in young patients;
less than twenty years; is called juvenile form[7, 16]. This
juvenile form usually include development of multiple
papillomatous lesions of aggressive behavior with a high
rate of recurrence[7, 13]. On the other hand, the form that
occurs in patients over the age of twenty; in the third and
fourth decades of life; is called adult form of respiratory
papillomatosis[7, 11, 17]. It is usually encountered in
males. The papillomas occurring in adult form are
usually solitary and they do not spread. Moreover, their
recurrence rate is lesser than that of juvenile form[13].
The incidence of respiratory papillomas is varying
according to its form. The incidence of the juvenile form is
about 4 per 100,000, however; the incidence of the adult
form is 2 per 100,000[5, 11, 13, 15, 16]. There are some factors
that affect the incidence of respiratory papilloma.They
include age, socioeconomic status and education level[4,5]. It was found that respiratory papilloma incidence is
higher in those with of low socioeconomic status and
low educational levels[4, 10].
Infection with HPV in children occurs mostly during birth through passage via the birth canals of infected
mothers[5-8]. The transmission of infection may occur
prior to birth, through the placenta, in approximately
12% of cases[4, 10]. One of the primary risk factors for the
development of juvenile form of respiratory papillomas
is the presence of maternal ano-genital warts during
pregnancy[4, 6]. Approximately, less than 1 % of infants
who have been exposed to maternal ano-genital warts
developed respiratory papillomatosis[6, 10, 18]. In adult patients,
the HPV is mostly transmitted sexually, usually
through oral sex [5-7]. Moreover, the risk of infection in
adults increases if the patients have sexual activity with
multiple partners[6].
Pathogenesis
HPV infection occurs through contact of minor excoriated
mucous or cutaneous surfaces with a source of
infection. The virus initially infects the basal epithelial
layer [13]. Following infection of the basal epithelial layer,
the HPV activates the epidermal growth factor receptor
pathway and deactivates many of the tumor-suppressing
proteins, resulting in cellular proliferation and epithelial
differentiation. The final result is production of
“cauliflower-like” exophytic lesions of the respiratory
papilloma[6, 13]. Mostly, these lesions are located at the
transitional areas between the squamous epithelium
and the ciliated columnar one[6, 11, 13, 19].
Papillomas can present as solitary or multiple nodules.
The nodules can be either exophytic, sessile or pedunculated
lesions. Majority of the lesions; generally appear
affecting the larynx[13]. However, they may affect any part
of the aero-digestive tract and even may extend to the
trachea-bronchial tree and pulmonary parenchyma[7, 13, 20]. Affection and extension to the distal airway occurs in
approximately 2-5 % of cases[7, 9, 20, 21].
Distal spread of the laryngeal papillomatosis has not
been explained. Different theories to explain this distal
spread have been postulated. They include the extension
of papillomas by contiguity, diffuse viral contamination,
and iatrogenic factors. The iatrogenic factors include laryngoscopy,
bronchoscopy, tracheostomy, and surgical
manipulation[7, 9]. Furthermore, there are high-risk factors
that are implicated in the distal spread of respiratory
papillomatosis . These risk factors include infection with
HPV-11, age above 3 years, tracheostomy performed to
avoid airway obstruction, and the previous invasive procedures[6, 18].
Although it is rare, the respiratory papillomatosis can be
transformed into bronchogenic squamous cell carcinoma[7, 8, 13]. This malignant transformation can occur decades
after the disease onset, generally in patients with
prior spreading to the tracheobronchial tree. Moreover,
malignant transformation occurs very infrequently in
the laryngeal form of the disease, without involvement of the distal airway[7]. The rate of malignant transformation
is less than 1% in children and is between 3 and 7
% in adults[13]. The risk factors involved in the malignant
transformation include infection with high-risk HPV
subtypes 16 and 18, smoking, previous radiotherapy or
the use of cytotoxic drugs, p53 gene mutation, and high
severity score or high activity of 20-5’-oligoadenylate
synthetase[7, 12]. The mechanism by which the malignant
transformation develops is unclear. However, some studies
attributed the oncological effect of the HPV is related
to its interference in the cellular cycle, which consequently
alters the control of cellular differentiation[7, 10, 11, 13].
Clinical presentation
The clinical presentation is not typical for all patients as
the course of the diseases of respiratory papillomatosis
is variable. Spontaneous remission sometimes occurs
in a minority of patients. However, in majority of cases,
it takes an aggressive course that requires multiple
interventions[13, 22]. In adults, as many of pulmonary illnesses,
the respiratory papillomatosis usually presents
with non-specific symptoms of airway involvement. The
symptoms may include chronic cough that is in most of
instances not responding to symptomatic treatment.
Also, change of voice or hoarseness may be present. Furthermore,
wheezing, dyspnea and stridor may occur[6, 7, 13, 22]. Meanwhile, in children, characteristically, the clinical
presentation of respiratory papillomatosis is composed
of a triad of progressive hoarseness, stridor, and dyspnea[4].
The hoarseness of voice is the most common symptom
in adults[7]. Other symptoms and signs may be present
like wheezing, tachypnea, and stridor[6, 7]. Furthermore,
clinical picture can be more sever in presentation, and
patients may present with airway obstruction and severe
respiratory distress[6, 7, 13]. Hence, Respiratory papillomatosis
can be misdiagnosed easily or discovered late due to
its nonspecific clinical presentations and unpredictable
course that mimics most of the common laryngeal and
respiratory diseases[13, 22]. Most of the patients are not
diagnosed on the first presentation and they are treated
for the presenting symptoms and signs, hence they do not
respond, and the symptoms worsen. The disease then
may evolve to severe respiratory distress due to air-way
obstruction[4, 9]. Respiratory papillomatosis is a benign
disease; however, it may lead to a significant morbidity
and may cause mortality in some instances due to high
rate of recurrence and the possibility to spread all over
the respiratory tract[4]. Progressive disease with peripheral
dissemination may lead to recurrent small air way
obstruction with subsequent obstructive atelectasis and
pneumonia. Even more, malignant degeneration may result
eventually. Hemoptysis is a common presentation
in patients with respiratory papillomatosis. Hence, it is usually confused with active pulmonary tuberculosis[23].
In the juvenile form of the respiratory papillomatosis,
the clinical presentation tends to be more severe due to
rapid growth of the lesions and airway obstruction[4, 5].
As the course of the disease is unpredictable and may
worsen at any time. Some children require follow-up
every six months while others need more frequent follow-
up visits or even admissions due to the progressive
disease[4, 22].
Diagnosis
Respiratory papillomatosis is usually not diagnosed by
clinical presentation or by the findings on the chest X-ray
(CXR)[4, 6]. In patients who had a progressive disease, a
solid or cavitated pulmonary nodules may be shown at the
CXR. On rare occasions, sessile or pedunculated nodular
lesions can be detected inside the trache-bronchial tree
on CXR[4, 7]. Computed tomograpgy of the Chest (CT-Chest)
is considered the radiological test of choice to assess
this entity of pulmonary pathology. It is accurate in the
identification and characterization of trachea-bronchial
and pulmonary lesions[9]. The radiological findings in the
CT-chest may suggest a diagnosis of papillomatosis at
the trachea or the bronchi[4, 7]. CT- Chest findings may
include focal or diffuse airway narrowing caused by
the nodular lesions. These lesions may be located on
the mucosal surface or even projecting into the airway
lumen. The involvement of pulmonary tissue with
respiratory papillomatosis may be manifested in the
CT by the presence of a single or multiple well defined,
multilobulated, solid nodular or polypoid lesions of
different sizes. These lesions usually have centrilobular
distribution, and are scattered throughout the lungs.
Some nodules may enlarge in size and transform into
air-filled cysts leading to the formation of large cavities
with irregular internal borders and thick or thin walls[7, 9, 23]. The nodular lesions in the lung usually affect more the
basal and posterior parts. Those lesions that developed
cavities are usually get infected. Other findings that
may be detected in CT-Chest are usually related to the
secondary effects or the complications of respiratory
papillomatosis. These findings may be due to airway
obstruction and secondary infections, atelectasis,
consolidation, air trapping, or bronchiectasis. The
lymph node enlargement and pleural effusion are
not frequently encountered, except in patients who
developed malignant transformation[7, 9].
On occurrence of malignant transformation, CT-Chest
may show enlargement of pulmonary nodular lesions,
nodules at the bronchi, or the trachea. This enlargement
of the lesions may be associated with numerous enlarged
lymph nodes at mediastinum and neck[4, 24]. The virtual
bronchoscopy is found to be a useful tool in the
assessment the disease affecting the air-way. It enables three-dimensional visualization of the airways[4]. Virtual
bronchoscopy has an advantage of avoiding the potential
complications of the conventional bronchoscopy.
Moreover, it enables visualization and assessment of
the distal airways beyond and endo-luminal stricture
if present[4, 8]. Magnetic resonance imaging (MRI) can
show laryngeal, trachea-bronchial, and pulmonary
lesions. However, its role in the diagnosis of respiratory
papillomatosis has not been definitely established[25].
Positron Emission Tomography (PET- Scan) has no a
major role in the diagnosis of respiratory papillomatosis
or in the early detection of the malignancy associated with
these lesions. However, it may show an elevated uptake
of the lesion due to elevated cellular proliferation[24, 26].
The direct laryngoscopy and fiberoptic bronchoscopy
are the gold standard ways to confirm the diagnosis
of respiratory papillomatosis. Bronchoscopy is the
most reliable method for the diagnosis of tracheabronchial
papillomatous lesions because it allows direct
visualization of the lesions with direct assessment of
the coloration of the trachea-bronchial mucosa.
Furthermore, biopsy of the lesions can be performed.
This is important for histo-pathological diagnosis and
viral typing. In addition, bronchoscopy is an important
step in the treatment planning. Papilloma lesions can be
seen as whitish polypoidal masses with clean and smooth
surfaces during bronchoscopy. They may be localized in
the larynx, trachea, or bronchi[7, 10, 20]. Histopathological
examination of these lesions is the best way for definitive
diagnosis of the respiratory papillomatosis [7,22].
Pathology
Respiratory papillomas usually present as exophytic
soft and friable nodules or masses. They may be sessile
or pedunculated, soft, and friable. Microscopic papilloma
appears with velvety mucosa over, while the mucosa
appears pinkish-whitish “cauliflower-like” with the exophytic
papilloma[10].
On histo-pathological examination, papillomas appear
as projections or multiple fronds that have central fibro-
vascular cores and covered by stratified squamous
epithelium[10]. Hyperplasia of the basal cell layer and the
large vacuolated epithelial cells are typical findings [7, 9, 10, 15]. Basal layer thickening with an increased number of
nucleated cells in the supra-basal layer of the stratified
epithelium may be detected as the HPV can cause a delay
in maturation of the epithelial cells[4, 15]. Moreover, histo-
pathological examination may reveal abnormal cellular
differentiation with abnormal keratin production
and expression[15]. The papillomatous lesions that extend
to the trachea-bronchial tree manifest a squamous
or ciliated and cylindrical epithelium[4, 7].
Pulmonary papillomatous lesions are presented in a
different histo-pathological way. They have a different morphology. They may appear as foci of squamous epithelium
that grow circumferentially within the alveoli
and have blood supply via alveolar vascularisation. The
center of the pulmonary papilloma usually shows areas
of necrosis and degeneration, while the squamous cells
on the periphery invade the adjacent alveoli. These pulmonary
lesions grow, coalesce together, and finally destroy
the pulmonary parenchyma and forming cavities[7,9]. Papillomas are histologically benign lesions, however;
dysplasia and malignant changes may occur[4, 7]. If malignant
transformation occurs, pathological examination
revealed sheets of polygonal tumoral cells with abundant
eosinophilic cytoplasm and vesicular nuclei. This is associated
with presence of foci of keratinization, atypia,
focal necrosis, and a variable mitotic rate, with micro-invasive
growth. Immuno-histochemical examination may
reveal expression of cytokeratin 5 and 6, which indicate
epithelial origin[25].
Differential Diagnosis
The differential diagnosis of respiratory papilloma
includes a wide range of variable respiratory illnesses.
It includes many of focal and diffuse central airway
diseases[4, 20]. Focal lesions may resemble tracheal
neoplasms, post-intubation stenosis, traumatic lesions,
some infectious diseases, and the systemic diseases
that may involve the airways and result in focal tracheabronchial
stenosis[4, 20, 23]. The diffuse pulmonary
papillomatous lesions should be differentiated
from Wegener's granulomatosis, amyloidosis,
tracheobronchopathia osteochondroplastica, relapsing
poly-chondritis, trachea-bronchomegaly, tuberculosis,
neurofibromatosis and sarcoidosis[20, 23].
The diagnosis is established well via bronchoscopy
and biopsy of the lesion. However, CT is an important
step in evaluation as the lesion location, presence and
pattern of calcification, presence of other parenchymal
pulmonary lesions may help in the preliminary diagnosis
and can help in the planning for bronchoscopy or the
therapeutic intervention[7, 9, 23]. In summary, the clinical
symptoms and signs of central airway involvement,
beside the presence of bronchoscopic or CT-findings
of tracheal or bronchial wall thickening and irregular
narrowing of their lumen, as well as nodular or polypoid
non-calcified lesions, are highly suggestive of respiratory
papillomatosis. Furthermore, the presence of cavitary
pulmonary nodules as a distal spread makes a diagnosis
of respiratory papillomatosis more likely. However, the
final diagnosis is reached by biopsy and histopathological
examination[4, 5, 20, 23].

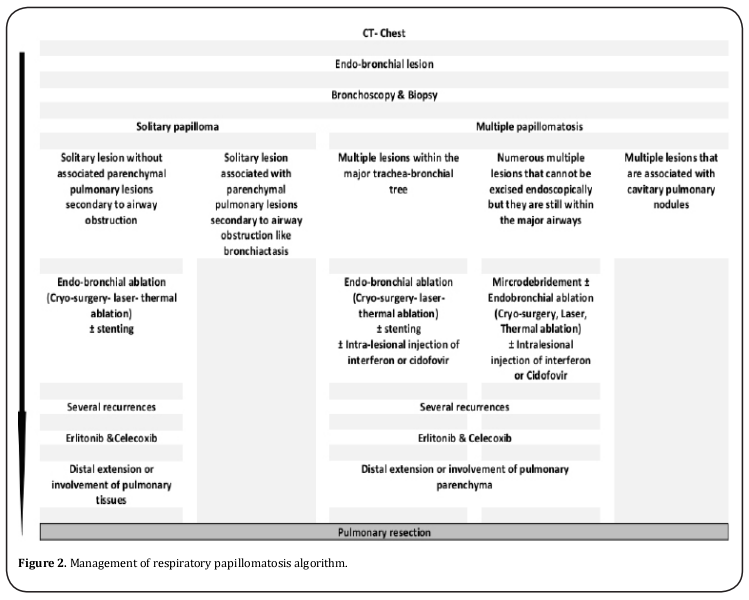

Treatment
Actually, there is no definitive standard curative treatment
for the respiratory papilloma. However, surgical excision of the papillomas is considered the mainstay
of treatment. The treatment aims at maintaining a functioning
clear airway and to keep the quality of phonation
[5, 11, 13, 27]. The main goal of the surgical intervention is
debulking the papillomatous lesion as much as possible
while keeping normal trachea-bronchial airway and pulmonary
tissue structures[4, 28]. The conversion into the use
of micro-laryngeal surgery and micro-debrider instead
of the laser in the debridement was taken place due to
the frequent complications associated with laser. These
complications include airway burns, laryngeal scarring
and stenosis, and trachea-esophageal fistulae[5, 26]. Precise
debridement can be performed using micro-debrider
with less damage to the underlying tissues and
greater preservation of the normal epithelium. However,
this modality of treatment needs several sessions and
should be repeated[4, 5]. Serious surgical complications
can still encountered in spite of the introduction of new
techniques in the treatment and a recent advancement
in the surgical equipment. These serious complications
include laryngeal synechia and glottic or sub-glottic
stenosis. Complications usually occur in patients who
underwent multiple interventions and several recurrences[5]. Recurrence following surgical ablation is not
uncommon. This could be explained by the persistence
of the HPV genome in the remaining tissues[4, 13].
In patients with extensive disease and a risk of laryngeal
obstruction; tracheostomy may be performed following
repeated intervention[5, 11, 12]. Donne et al.[12] documented
that HPV subtype 11 is more likely to result in tracheostomy.
In those patients who had tracheostomy,
de-cannulation should be performed once the airway is
considered to be stable and the disease is under control
to avoid an additional site for rapid viral colonization
and progression of the disease distally[5].
Around one fifth of patients with respiratory papillomas
require additional adjuvant medical therapy beside the
surgical treatment to control the disease[4, 13]. The adjuvant
therapy is not used from the start. The current
criteria for adjuvant therapy in patients with respiratory
papillomas include the need for more than four surgical
interventions per year, rapid recurrence of the lesions
that are associated with airway compromise, and distal
spread of the disease. Most of medications use is based
on immunomodulation and inhibition of HPV proliferation.
These include interferon, antiviral agents, retinoids,
and oxigenase-2 cycle inhibitors[13].
Interferon is one of the early drugs that were used as
an adjuvant treatment for respiratory papilloma. It exhibited
positive favorable results in some patients as
it resulted in the growth reduction of the lesion[13, 18].
However, its intravenous administration may result in
systemic toxicity, possible leucopenia and thrombocytopenia[4]. Moreover, it can lead to some adverse effects
that include transient fever, fatigue, nausea, arthralgia,
headache, and spastic diplegia in infants [5]. Cidofovir is
another antiviral medication. It is an analog of cytosine
that is currently used commonly as a medical adjuvant
drug in the treatment of the respiratory papilloma[5, 22].
It has the advantage to be administered either intravenously,
via nebulization, or by intra-lesional injection.
The advantage of intra-lesional injection of the cidofovir
is the good treatment response where a partial to total
regression of lesions occurred. Furthermore, this type of
treatment is associated with a reduction of the frequency
of surgical interventions [4, 5, 22]. In addition, the intra-lesional
administration of cidofovir maintains the plasma
levels below those leading to toxicity in case of systemic
treatment. Besides that, it is not associated with local
side effects[5, 14, 22]. Although the long term adverse effects
of the intra-lesional administration of cidofovir are not
well-known, theories mentioned that a risk of malignant
transformation may be associated with its use[4, 22].
Vaccination against HPV offers potential for the future
eradication of the disease through reduction of the incidence
and the transmission of the virus. The quadrivalent
vaccine is given for the prevention of cervical,
ano-genital cancers, and pre-carcinogenetic lesions that
are associated with HPV subtypes 6,11,16, and 18[28].
The vaccine carries a promise for patients affected by
respiratory papillomatosis. However, multicenter trials
should validate the isolated positive experiences which
may determine the true benefits of the vaccination as a
treatment for respiratory papillomatosis[5].
Case Presentation
We present here a 35 years old male patient who was referred
to our department complaining of left sided pleuritic chest
pain and chronic non-productive cough. The symptoms dated
one month prior to the presentation and increasing in the
severity. Patient had neither hemoptysis nor loss of weight
and there were no other symptoms. Patient had a history of
seasonal bronchial asthma and history of pigtail catheter insertion
for left sided pleural effusion two years earlier of undetermined
nature. Moreover, the patient has a positive family
history for breast cancer (three aunts) and questionable family
history of lung cancer.
The CXR on admission; revealed a partial atelectasis-consolidation
of the left upper lobe while the CT-Chest on April
2017, showed left endo-bronchial lesion located at the left
main bronchus measuring (7.5X12.5 mm) that was associated
with an enlarged left hilar LN causing obstructive consolidation
(Figure 1). PET-CT scan was performed on May 2017. It
showed suspicious metabolically active nodule located inside
the left main bronchus. V-Q scan Rt 73.9% and Lt 26.1%.
Fibre-optic bronchoscopy was performed showed a left main
bronchial mass occluding the left upper lobe. Biopsy was taken
directly from the mass. Histo-pathological examination
revealed a multiple mixed glandular and squamous cell papilloma. Although the pathologist considered the differential
diagnosis of inflammatory polyps, he favored the diagnosis
of multifocal papillomatosis due to the presence of squamous
epithelial hyperplasia and glandular epithelium. The surgical
resection or ablation was the treatment of choice to restore
the patency of the airway and to eradicate the disease. Two
options of surgical interventions were proposed. The first option
was the thermal ablation of the mass lesion via combined
rigid and fibre-optic bronchoscopy. The second option was to
perform a sleeve left upper lobectomy. Following discussion
with the patient, the first option was favored by the patient
and the treating medical team. The second surgical option
was postponed if the first one was unsuccessful or incomplete.
The histo-pathological examination of the specimen sent revealed a bronchial papilloma with mixed fungal infection (actinomycosis and aspergillosis). Patient was discharged on medical treatment for actinomycosis and aspergillosis. Follow- up visits were planned following one month and then every three months. Patient is doing well on follow-up with no new complaints.
Discussion
Squamous papillomas are rare tumors. They usually accounted for not more than 8 % of all benign pulmonary tumors[29].
The majority of publications found in the literature are case
reports. They included one or two patients[13, 29-34]. Other publications are small series of patients and included between six
and nine patients like those published by Lang et al.[1] and
Ablanedo-Terrazas et al.[35]. It is infrequently to be asymptomatic and discovered incidentally on radiological examination.
However, the majority of patients are symptomatic. Symptoms
are variable. They include wheezes, cough, hemoptysis, or recurrent pneumonia. In our patient, the main complaint was
chronic cough non responding to treatment. Usually, symptoms are secondary to the mass obstructive effects within the
airways[4, 29]. As respiratory papilloma usually presents as an endo-bronchial lesion, it usually leads to bronchial stenosis with
subsequent atelectasis that predisposes to recurrent infection
and pneumonia and finally ends with bronchiectasis[29]. Our
patient was male at the middle age and the squamous papillomas are more common to occur in men[1, 13, 29-31, 36]. Squamous
papillomas have a potential of malignant transformation in up
to 40 % of cases. Furthermore, the incidence of occurrence of
malignancy elsewhere in the lung is around 13%[29, 37]. Hence,
careful endoscopic examination of the tracheo-bronchial tree
with good biopsy specimens is essential for those patients. Pathologist should be meticulous during examinations of these
tissues both during first diagnosis and after complete excision.
The methods of treatment; either endoscopic removal or surgical resection; are still controversial. Endoscopic ablation by
laser or diathermy may prevent a full pathological examination of the whole papilloma, which may harbor a carcinoma[29].
Therefore, it is recommended to completely excise the solitary
squamous papilloma in order to exclude an invasive malignancy and prevent recurrence[38]. In our patient, we passed the
bronchoscope first beyond the lesion to evaluate the extent the
lesion and then thermal ablation was applied at the periphery
of the lesion and the base to completely excise the mass with
preservation of tissues for histo-pathological examination to
exclude malignancy or malignant transformation. The surgical resection should be deferred as the last option and when
considered the surgeon should perform lung-sparing surgical
techniques as sleeve lobectomy or bronchoplasty instead of
extensive resection as these are benign lesions. Extensive pulmonary resection is considered only in case of extension of the
disease to the pulmonary parenchyma or in patients who had a complicated disease with bronchiectasis[13, 29, 30]. The majority
of authors recommended endo-bronchial surgical excision
using laser, cryo-surgery or thermal ablation or intra-lesional
injection of anti-viral drugs instead of resection[13, 31, 34-36].
We preferred thermal ablation for the lesion in our patient. No
complications were encountered intra-operatively.
As this disease is rare and treatment is non-standardized, our group of research has proposed an algorithm for its management based on the revision of the literature (Figure 2). This algorithm firstly classifies the lesion either multiple or solitary and then goes forward according to the absence or presence of complications and the involvement of pulmonary parenchyma. Furthermore, it takes into consideration the recurrence of the disease and its progression during the course of its management.
Conclusions
In conclusion, respiratory papillomas are rare benign lesions. They are characterized by the appearance of papillomatous lesions anywhere in the tracheo-bronchial tree. It affects children and young adults. Although the disease affects mainly the upper airways, it may be aggressive and extends distally to the lower respiratory tract and pulmonary parenchyma. The course of the disease is unpredictable. It may regress spontaneously, but in other instances it may lead to serious complications ranging from airway obstruction up to malignant transformation. Endo-bronchial interventions and surgical excision are the mainstay of definitive treatment to prevent recurrence and to exclude malignancy.
Ethical approval
Ethical approval has been exempted by faculty ethical committee based on absence of any risk or violation of applied guidelines in such cases.
Conflicts Of Interest
None-declared.
References
1. Lang, T. U., Khalbuss, W. E., Monaco, S. E., & Pantanowitz, L. (2011). Solitary Tracheobronchial Papilloma:
Cytomorphology and ancillary studies with histologic
correlation. Cytojournal, 8.
2. Travis, W. D., Brambilla, E., Muller-Hermelink, H. K.,
& Harris, C. C. (2004). World Health Organization
classification of tumours. Pathology and genetics of
tumours of the lung, pleura, thymus and heart,10, 179-84.
3. Wick, M. R., & Mills, S. E. (2018). Benign and borderline
tumors of the lungs and pleura. In Practical Pulmonary
Pathology: A Diagnostic Approach(pp. 665-722). Elsevier.
4. Fortes, H. R. , Von Ranke, F. M. , Escuissato, D. L. , Araujo
Neto, C. A. , Zanetti, Gláucia, & Hochhegger, B. , et al. (2017).
Recurrent respiratory papillomatosis: a state-of-the-art
review. Respiratory Medicine, 126, 116-121.
5. Carifi, M. , Napolitano, D. , Morandi, M. , & Dall'Olio, D.
. (2015). Recurrent respiratory papillomatosis: current
and future perspectives. Therapeutics and Clinical Risk
Management, 11(default), 731-738.
6. Fusconi, M., Grasso, M., Greco, A., Gallo, A., Campo, F.,
Remacle, M., ... & De Vincentiis, M. (2014). Recurrent
respiratory papillomatosis by HPV: review of the
literature and update on the use of cidofovir. Acta
Otorhinolaryngologica Italica, 34(6), 375.
7. Marchiori, E., Araujo Neto, C. D., Meirelles, G. S. P.,
Irion, K. L., Zanetti, G., Missrie, I., & Sato, J. (2008).
Laryngotracheobronchial papillomatosis: findings on
computed tomography scans of the chest.Jornal Brasileiro
de Pneumologia, 34(12), 1084-1089.
8. Chang, C. H., Wang, H. C., Wu, M. T., & Lu, J. Y. (2006). Virtual
bronchoscopy for diagnosis of recurrent respiratory
papillomatosis. Journal of the Formosan Medical
Association, 105(6), 508-511.
9. Ağgünlü, L., & Erbaş, G. (2009). Recurrent respiratory
papillomatosis with lung involvement. Diagn Interv
Radiol, 15(2), 93-5.
10. Venkatesan, N. N., Pine, H. S., & Underbrink, M. P. (2012).
Recurrent respiratory papillomatosis. Otolaryngologic
Clinics of North America, 45(3), 671-694.
11. Goon, P., Sonnex, C., Jani, P., Stanley, M., & Sudhoff,
H. (2008). Recurrent respiratory papillomatosis: an
overview of current thinking and treatment. European
Archives of Oto-Rhino-Laryngology, 265(2), 147-151.
12. Donne, A. J., Hampson, L., Homer, J. J., & Hampson, I. N.
(2010). The role of HPV type in recurrent respiratory
papillomatosis. International Journal of Pediatric
Otorhinolaryngology, 74(1), 7-14.
13. Katsenos, S., & Becker, H. D. (2011). Recurrent respiratory
papillomatosis: a rare chronic disease, difficult to treat,
with potential to lung cancer transformation: apropos of
two cases and a brief literature review. Case reports in
oncology, 4(1), 162-171.
14. Gelinas, J. F., Manoukian, J., & Côté, A. (2008).
Lung involvement in juvenile onset recurrent
respiratory papillomatosis: a systematic review
of the literature. International journal of pediatric
otorhinolaryngology, 72(4), 433-452.
15. Wiatrak, & Brian, J. . (2003). Overview of recurrent
respiratory papillomatosis. Current Opinion in
Otolaryngology & Head and Neck Surgery, 11(6), 433-441.
16. Reeves, W. C. , Ruparelia, S. S. , Swanson, K. I. , Derkay, C.
S. , Marcus, A. , & Unger, E. R. . (2003). National registry
for juvenile-onset recurrent respiratory papillomatosis.
Archives of Otolaryngology–Head & Neck Surgery, 129(9),
976.
17. Martina, D. , Kurniawan, A. , & Pitoyo, C. W. . (2014).
Pulmonary papillomatosis: a rare case of recurrent
respiratory papillomatosis presenting with multiple
nodular and cavitary lesions. Acta Med Indones, 46(3),
238-243.
18. Lee, J. H., & Smith, R. J. (2005). Recurrent respiratory
papillomatosis: pathogenesis to treatment. Curr Opin
Otolaryngol Head Neck Surg, 13(6), 354-359.
19. Prince, J. S. , Duhamel, D. R. , Levin, D. L. , Harrell, J. H.
, & Friedman, P. J. . (2002). Nonneoplastic lesions of
the tracheobronchial wall: radiologic findings with
bronchoscopic correlation. Radiographics, 22 Spec No(4),
S215.
20. Taliercio, S. , Cespedes, M. , Born, H. , Ruiz, R. , & Branski, R. C.
. (2014). Adult-onset recurrent respiratory papillomatosis
a review of disease pathogenesis and implications for
patient counseling. JAMA Otolaryngology - Head and Neck
Surgery, 141(1), 78-83.
21. Shiau, E. L. , Li, M. F. , Hsu, J. H. , & Wu, M. T. . (2014). Recurrent
respiratory papillomatosis with lung involvement and
malignant transformation. Thorax, 69(3), 302-303.
22. Tasca, R. A., & Clarke, R. W. (2006). Recurrent respiratory
papillomatosis. Archives of Disease in Childhood, 91(8),
689-691.
23. Marchiori, E. , Pozes, A. S. , Souza Junior, A. S. , Escuissato,
D. L. , Irion, K. L. , & Cd, A. N. , et al. (2008). [diffuse
abnormalities of the trachea: computed tomography
findings]. Jornal Brasileiro De Pneumologia, 34(1), 47-54.
24. Xiao, Y., Wang, J., Han, D., Ma, L., & Lopez, F. A. (2015). A case
of the intrapulmonary spread of recurrent respiratory
papillomatosis with malignant transformation. The
American journal of the medical sciences, 350(1), 55-57.
25. Mauz, P. S., Zago, M., Kurth, R., Pawlita, M., Holderried, M.,
Thiericke, J., et al. (2014). A case of recurrent respiratory
papillomatosis with malignant transformation, HPV11
DNAemia, high L1 antibody titre and a fatal papillary
endocardial lesion. Virology journal, 11(1), 114.
26. Yu, J. P., Barajas, J. R., Olorunsola, D., Sugrue, L. P., &
Hernandez-Pampaloni, M. (2013). Heterogeneous
18F-FDG uptake in recurrent respiratory papillomatosis.
Clinical nuclear medicine, 38(5), 387-389.
27. Dyrstad, S. W. , & Rao, K. A. . (2008). Recurrent respiratory
papillomatosis (rrp)—juvenile onset. Clinical Medicine:
Oncology, 2, 481-486.
28. Wilcox, L. J., Hull, B. P., Baldassari, C. M., & Derkay, C.
S. (2014). Diagnosis and management of recurrent
respiratory papillomatosis. The Pediatric infectious
disease journal, 33(12), 1283-1284.
29. Lee, Y. O., Kim, D. H., Kim, C. H., Park, T. I., & Cho, S.
(2009). Rare tumor of the tracheobronchial tree: solitary
squamous papilloma. The Thoracic and cardiovascular
surgeon, 57(03), 178-179.
30. Inamura, K., Kumasaka, T., Furuta, R., Shimada, K., Hiyama,
N., Furuhata, Y., et al. (2011). Mixed squamous cell and
glandular papilloma of the lung: a case study and literature
review. Pathology international, 61(4), 252-258.
31. Limsukon, A., Susanto, I., Hoo, G. W. S., Dubinett, S. M., &
Batra, R. K. (2009). Regression of recurrent respiratory
papillomatosis with celecoxib and erlotinib combination
therapy. Chest, 136(3), 924-926.
32. Marchiori, E., Zanetti, G., & Mauro Mano, C. (2010).
Tracheobronchial papillomatosis with diffuse cavitary
lung lesions. Pediatric radiology, 40(7), 1301-1302.
33. Grunzke, M. L., & Garrington, T. (2010). Diffuse cavitary
lung lesions: reply to marchiori et al. Pediatric Radiology,
40(7), 1303-1303.
34. Mohan, K. T., Greenheck, J., & Rubio, E. R. (2008). Recurring
tracheal papillomatosis treated with cryosurgery.
Southern medical journal, 101(9), 967-968.
35. Ablanedo-Terrazas, Y. , Soda-Merhy, A. , M HernándezPalestina, Ormsby, C. E. , & G Reyes-Terán. (2012).
Intralesional cidofovir in severe juvenile respiratory
papillomatosis. B-ENT, 8(3), 197-202.
36. Bondaryev, A. , Makris, D. , Breen, D. P. , & Dutau, H. . (2009).
Airway stenting for severe endobronchial papillomatosis.
Respiration, 77(4), 455-458.
37. Inoue, Y. , Oka, M. , Ishii, H. , Kimino, K. , Kishikawa, M. , &
Ito, M. , et al. (2001). A solitary bronchial papilloma with
malignant changes. Internal Medicine, 40(1), 56-60.
38. Litzky, & Leslie. (2003). Epithelial and soft tissue tumors
of the tracheobronchial tree. Chest Surgery Clinics of
North America, 13(1), 1-40.
39. Robb, P. K. , Weinberger, P. M. , Perakis, H. , Li, A. , Klein, A.
M. , & Johns, M. M. , et al. (2011). Association of asthma with
clinically aggressive recurrent respiratory papillomatosis.
Archives of Otolaryngology–Head & Neck Surgery, 137(4),
368-372.
40. Kuruvilla, S. , Saldanha, R. , & Joseph, L. D. . (2008).
Recurrent respiratory papillomatosis complicated by
aspergillosis: a case report with review of literature.
Journal of Postgraduate Medicine, 54(1), 32-34.
